The Coast Guard’s first fully missionized HC-27J medium range surveillance aircraft completed its inaugural flight Sept. 6, 2023.

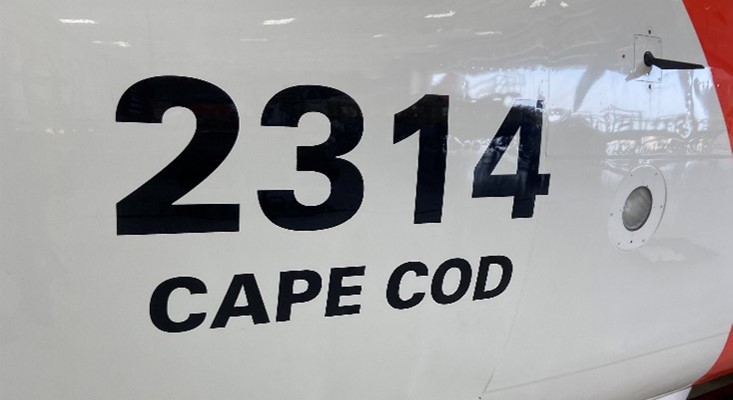

Air Station Cape Cod received its second upgraded HC-144B medium range surveillance aircraft on May 10, 2023, with the delivery of CGNR 2314. This is the 15th HC-144 in the Coast Guard fleet to undergo Ocean Sentry Refresh modification and Minotaur mission system integration.


The Coast Guard completed work on CGNR 2318, its 14th HC-144B Ocean Sentry medium range surveillance aircraft outfitted with both the Minotaur mission system and Ocean Sentry refresh modifications, Jan. 17, 2023. The aircraft will be the first updated aircraft for Air Station Cape Cod, Massachusetts.

Medium Range Surveillance Aircraft

A C-27J used to assist in the Hurricane Harvey efforts




The HC-144 Ocean Sentry and the C-27J Spartan make up the Coast Guard’s medium range surveillance aircraft fleet. These aircraft are instrumental in providing the capability necessary for the Coast Guard to fulfill its maritime patrol, drug and migrant interdiction, disaster response, and search and rescue missions more effectively.

Why this program?

The program was established in fiscal year 2002 to expand the Coast Guard’s patrol hour capacity and replace the aging aircraft fleet. The Coast Guard needed greater endurance to remain on-scene longer and track targets for longer periods of time. Improved sensor capability and increased passenger capacity also were identified as necessary for better mission effectiveness.

How are the upgrades implemented?

The medium range surveillance fleet includes 18 HC-144 Ocean Sentries. Ocean Sentries are capable of carrying out a wide range of Coast Guard surveillance, search and rescue and transport missions and are outfitted with Minotaur mission system workstations, which are comprised of an integrated suite of electronic equipment that enables the aircrew to compile data from the aircraft's multiple sensors to transmit and receive both classified and unclassified information from other assets including aircraft, surface vessels and shore facilities. With multiple voice and data communications capabilities and satellite communications, the HC-144 is contributing, via a networked command and control system, to the common tactical picture and common operating picture. The aircraft is also equipped with a vessel automatic identification system, direction-finding equipment, an electro-optical/infrared system and a multi-mode search radar to improve the Ocean Sentry’s situational awareness and responsiveness.

 The Coast Guard is also in the process of missionizing 14 C-27J aircraft that were transferred from the U.S. Air Force under the direction of the National Defense Authorization Act, Fiscal Year 2014. The multi-year project was supported by the HC-27J Asset Project Office (APO), which was stood up in Elizabeth City, North Carolina. Specific functionalities of the APO included development of Coast Guard-specific operational and maintenance procedures, training plans, technical manuals, a logistics program and test and evaluation procedures. Airworthiness certifications were obtained for all aircraft as part of the process.

 As originally delivered, the C-27Js are outfitted with weather radar and communications equipment capable of supporting transport and other Coast Guard missions. Missionization modifications, including integration of specialized components such as surface search radar and electro-optical/infrared sensors, is in the prototype phase and will enhance the aircraft’s capability to carry out the full range of Coast Guard missions.

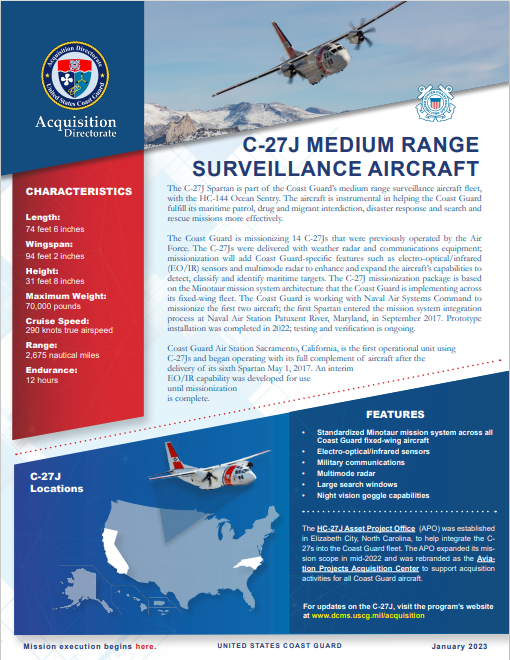

C27J

The Coast Guard has 14 C-27J Spartans in its medium range surveillance aircraft fleet, along with its HC-144 Ocean Sentries, to perform drug and migrant interdiction, disaster response and search and rescue missions. The aircraft’s range, endurance and speed make it a valuable asset in addressing the Coast Guard’s maritime flight-hour gap.

Under the National Defense Authorization Act for Fiscal Year 2014, 13 C-27J aircraft were regenerated from a preserved status at Davis-Monthan Air Force Base in Tucson, Arizona. A 14th aircraft was transferred to the Coast Guard after formal acceptance by the Air Force in April 2017.

As delivered, the C-27Js are outfitted with weather radar and communications equipment capable of supporting transport and other Coast Guard missions. The Coast Guard worked with Naval Air Systems Command to determine which additional specialized equipment will be installed to enhance and expand the aircraft’s capabilities. The C-27J missionization package is based on the Minotaur mission system architecture that the Coast Guard is implementing across the rest of its fixed-wing fleet. The first Spartan entered the mission system integration process at Naval Air Station Patuxent River, Maryland, in September 2017. Prototype installation is scheduled for completion in 2022, with testing to follow.

The HC-27J Asset Project Office (APO), at Elizabeth City, North Carolina, oversaw the aircraft regeneration process and conducted many of the acquisition duties, including development of Coast Guard-specific crew duties, procedures, technical manuals, curricula and test and evaluation reporting.

Air Station Sacramento, California, is the first operational unit using C-27Js; it received its sixth and final Spartan May 1, 2017. The remaining aircraft are stationed at the APO or in the mission system integration process.

Characteristics

  • Length: 74 feet 6 inches
  • Wingspan: 94 feet 2 inches
  • Height: 31 feet 8 inches
  • Maximum Weight: 70,000 pounds
  • Cruise Speed: 290 knots true airspeed
  • Range: 2,675 nautical miles
  • Endurance: 12 hours

Features

  • Standardized Minotaur mission system across all Coast Guard fixed-wing aircraft (under development)
  • Military communications
  • Multimode radar
  • Large search windows
  • Night vision goggle capabilities

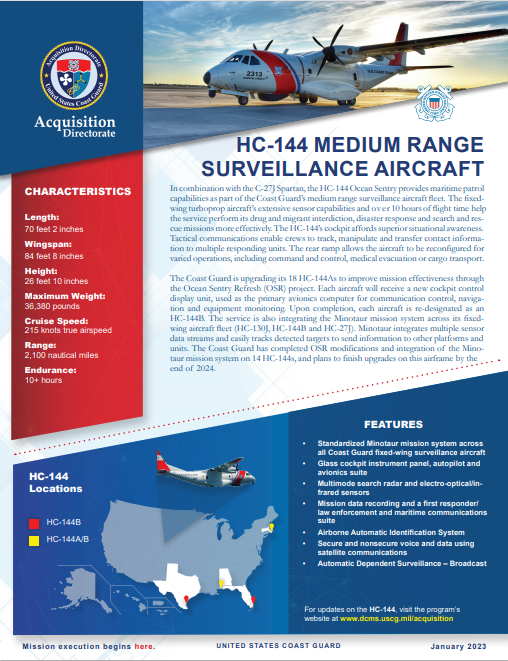

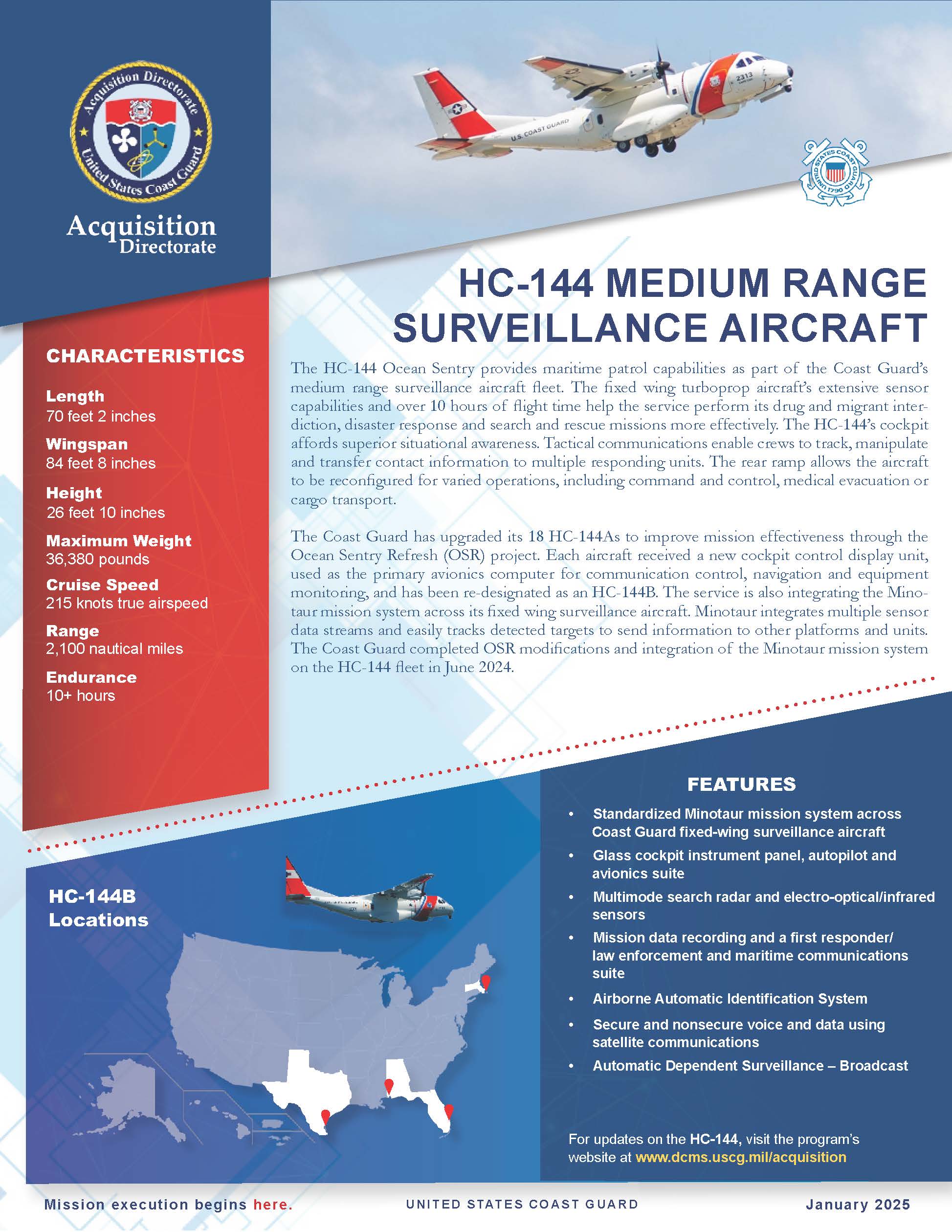

HC144

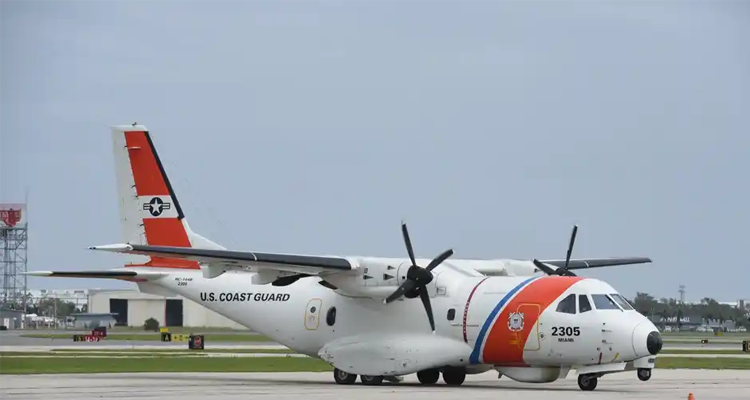

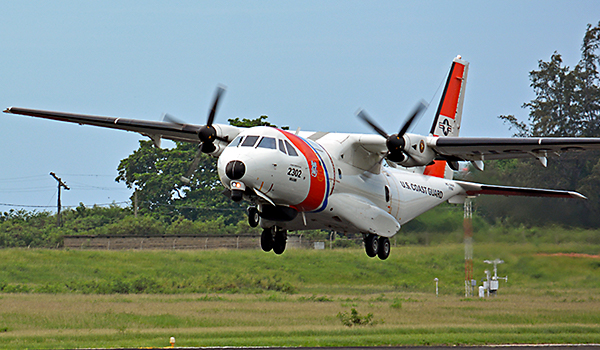

Eighteen HC-144 Ocean Sentry aircraft are included in the Coast Guard’s medium range surveillance fleet, along with the C-27J Spartans. The fixed-wing, turboprop aircraft has an endurance of more than 10 hours and an extensive sensor capability that helps the Coast Guard fulfill its maritime patrol, drug and migrant interdiction, disaster response and search and rescue missions more effectively.

The Ocean Sentry is particularly effective at locating objects in large search areas and vectoring other military, government and first responders to these locations. The aircraft has the capability to perform aerial delivery of search and rescue equipment such as rafts, pumps and flares. With its sophisticated command and control system, it also can serve as a platform for an on-scene commander during homeland security missions.

The Ocean Sentry features a rear ramp that allows crews to quickly reconfigure the aircraft for varied operations, including command and control, medical evacuation or passenger transport.

The Coast Guard is upgrading its HC-144A fleet to improve mission effectiveness and situational awareness through the Ocean Sentry Refresh project. Each aircraft will receive a new cockpit control and display unit, used in flight management as the primary avionics computer for communication control, navigation and equipment monitoring. Upon completion, each aircraft is redesignated as an HC-144B.

The service is also integrating the Navy’s Minotaur mission system architecture across its fixed-wing aircraft fleet. The Minotaur integration process for the prototype HC-144B began at Naval Air Station Patuxent River, Maryland, in July 2016. The missionization process is scheduled for completion by 2024.

Characteristics

  • Length: 70 feet 2 inches
  • Wingspan: 84 feet 8 inches
  • Height: 26 feet 10 inches
  • Maximum Weight: 36,380 pounds
  • Cruise Speed: 215 knots true airspeed
  • Range: 2,100 nautical miles
  • Endurance: 10+ hours

Features

  • Standardized Minotaur mission system across all Coast Guard fixed-wing aircraft (under development)
  • Glass cockpit instrument panel, autopilot and avionics suite
  • Multimode search radar and electro-optical/infrared sensors
  • Mission data recording and a first responder/law enforcement and maritime communications suite
  • Cruise Speed: 215 knots true airspeed
  • Airborne Automatic Identification System
  • Secure and nonsecure voice and data using satellite communications
