Response Boat-Medium

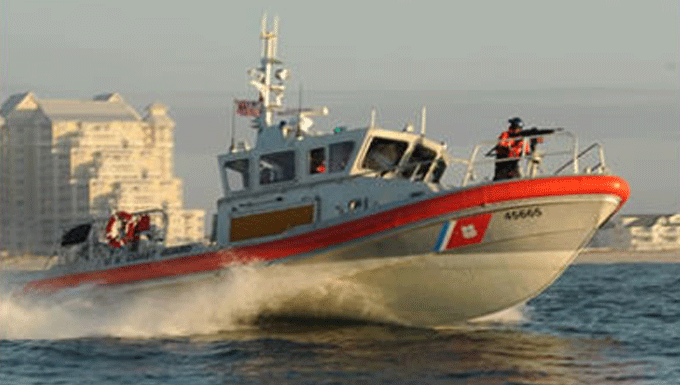

Response boat-medium

For more photos of the Response Boat-Medium, visit the image gallery on Flickr.

Status

All 174 response boats-medium have been delivered. The RB-M program transferred full responsibility for supporting the boats to the sustainment community June 1, 2015. The program will continue warranty execution and contract closeout until 2017.

  Program Information

  Resources

  Related

The RB-M is designed for multiple missions, including search and rescue; law enforcement; drug and migrant interdiction; and ports, waterways and coastal security. The boats feature increased speed, greater maneuverability, and a climate-controlled cabin and shock-mitigating seats to reduce crew fatigue on extended patrols.

Characteristics

  • Length: 45 feet
  • Beam: 14 feet, 7.75 inches
  • Draft: 3 feet, 4 inches
  • Displacement: 36,500 pounds
  • Maximum Speed: 42.5 knots
  • Range: 250 nautical miles at 30 knots
  • Endurance: one day

Features

  • Deep-V, double-chine hull for a balance of speed and stability in various conditions
  • All-aluminum construction
  • Twin diesel engines with waterjet propulsion, eliminating propellers beneath the boat to protect the engines from debris and make it safer to retrieve someone from the water
  • Prominent fendering, which allows the boat to come alongside without risk of damage from bumping or shifting and frees the crew for other tasks
  • Self-righting stability (intact)
  • Port, starboard and aft recovery platforms
  • Fore and aft weapons mounts
  • Pilothouse with shock-mitigating seats for greater crew comfort and endurance
  • Survivors’ compartment with seating for five
